Large-Diameter Elbow Applications
Direction changes and fluid transmission connections in large industrial pipelines and underground water systems.
Engineering Application
Direction changes and fluid transmission connections in large industrial pipelines and underground water systems.
Solution Overview
Large-diameter elbows are installed at critical turning points in major pipeline projects, allowing the route to be coordinated with roads, terrain, equipment foundations and existing utilities.
Installation Positions

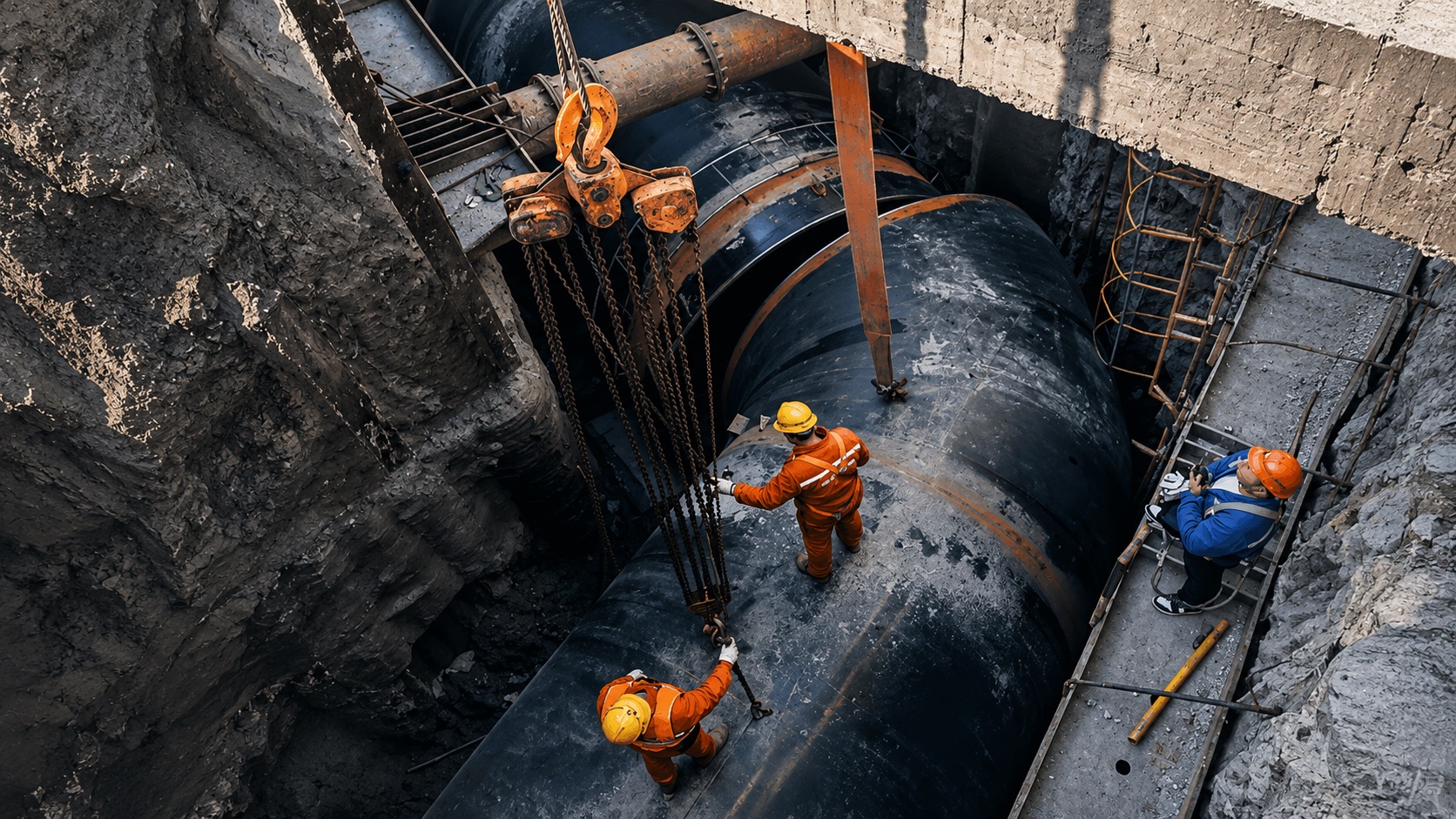

- Turns in underground water transmission mains
- Pump station inlet and outlet connections
- Route adjustment sections in long-distance pipelines
Engineering Problems Addressed
- Accommodates route changes caused by roads and terrain
- Avoids stress concentration and damage from forced pipe bending
- Optimizes routing in confined spaces and clears adjacent utilities
- Supports stable long-term transmission of high-volume media
Related Products
Carbon Steel Pipe
Carbon steel pipes for large-diameter transmission, structural support and project material packages.
Spiral Welded Steel Pipe
Spiral welded steel pipes for long-distance transmission and large-diameter pipelines, supporting stock supply and project delivery.
Elbow
90-degree, 45-degree and project-custom elbows for direction changes in water, power, chemical and municipal piping systems.
